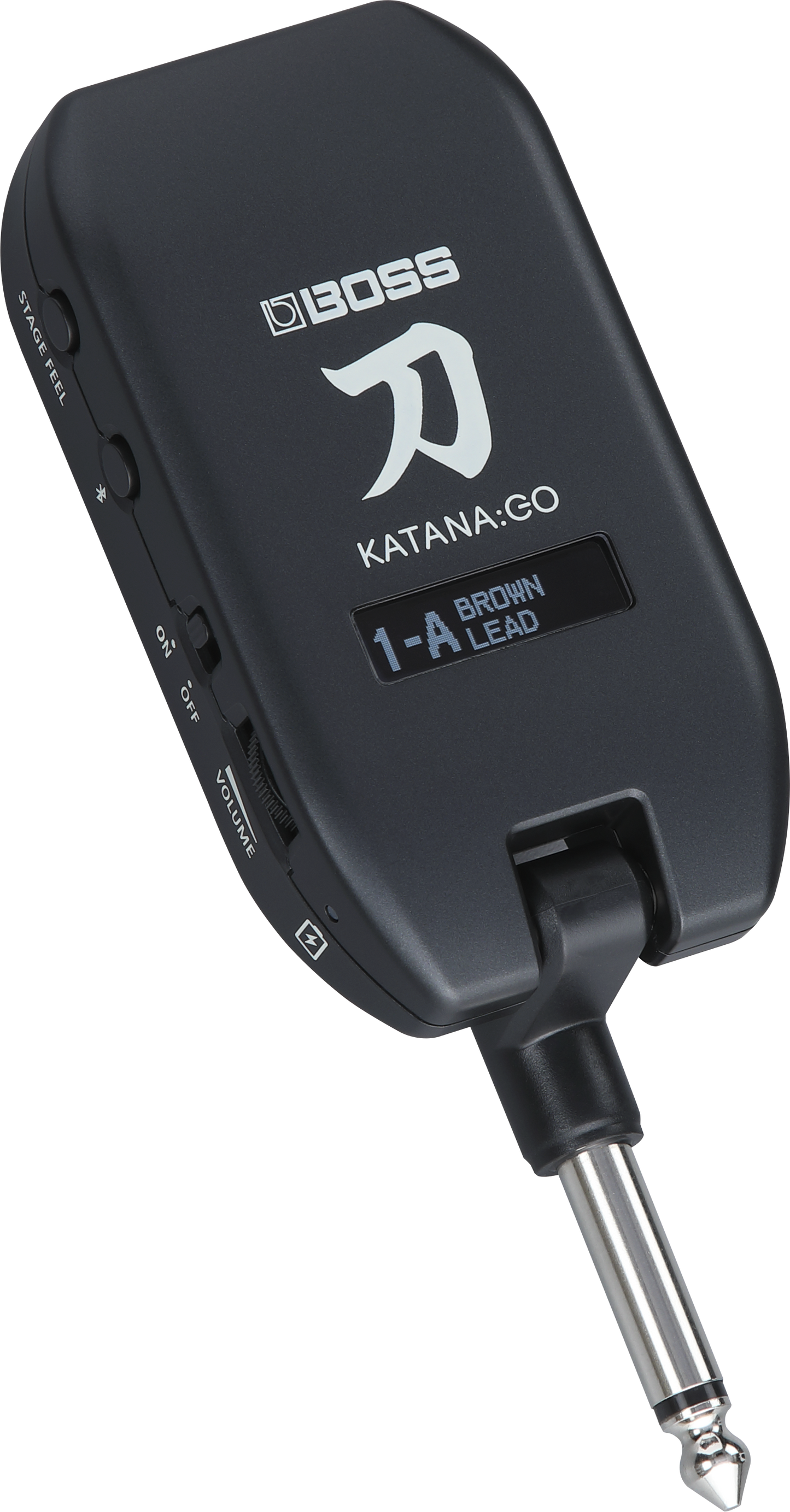

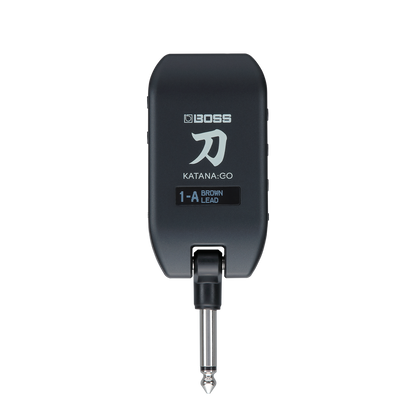

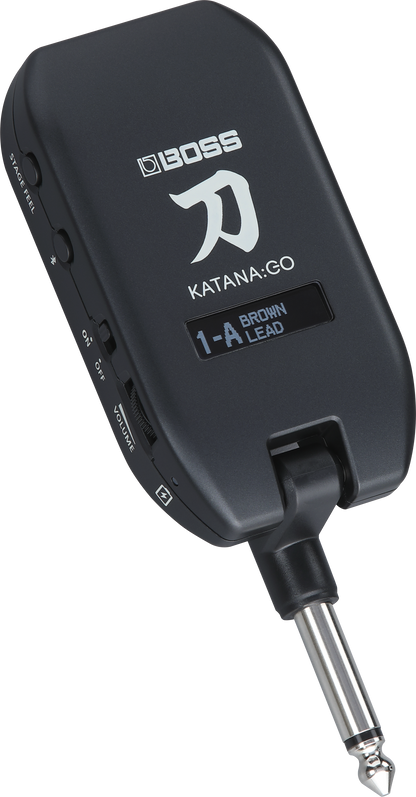

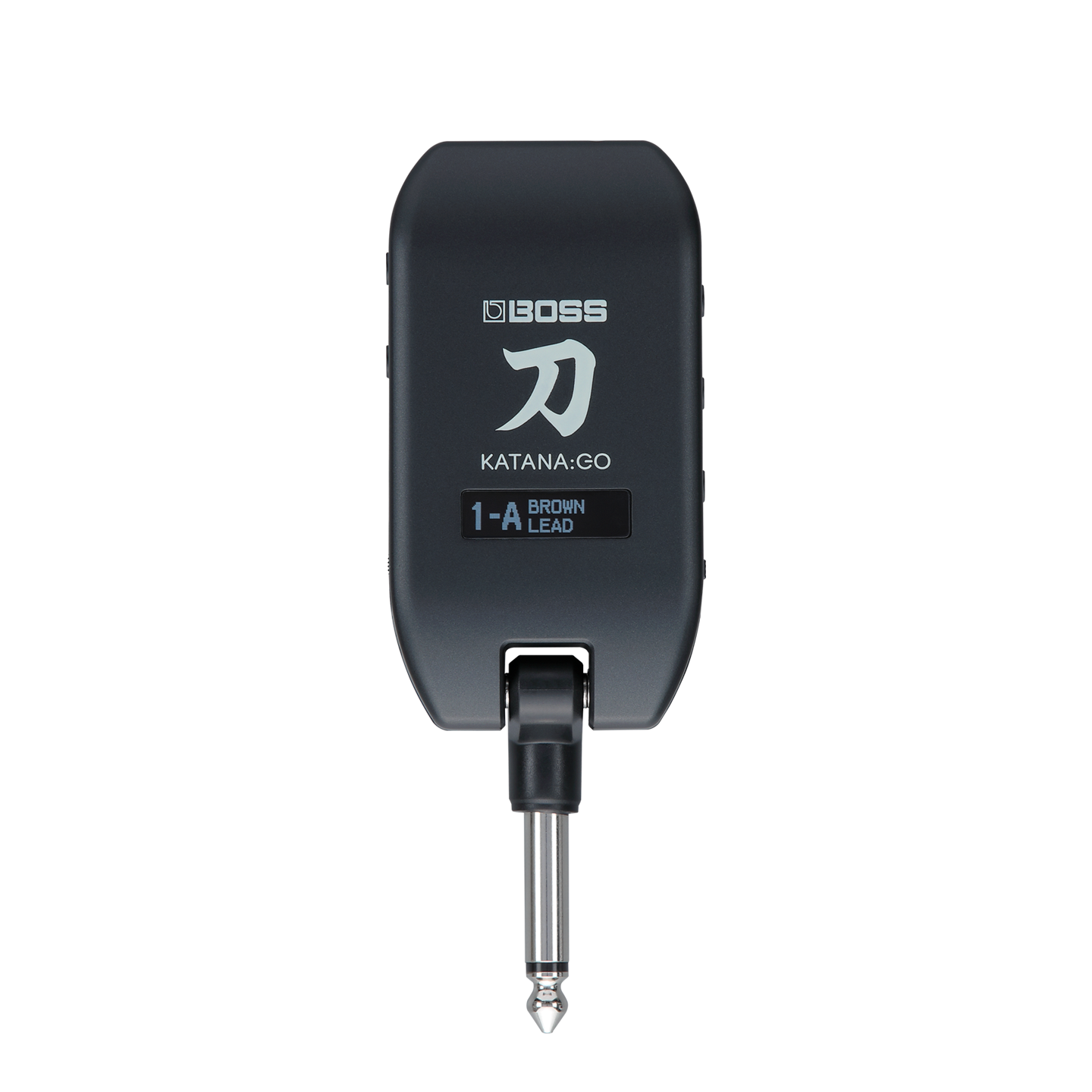

Boss Katana Go 2

-Sample Rate
48 kHz

-AD Conversion
32 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

-DA Conversion
32 bits

-Memories
Guitar mode: 30
Bass mode: 30

-Nominal Input Level
INPUT: -10 dBu

-Input Impedance
INPUT: 1 M ohm

-Maximum Output Level
PHONES: 30 mW + 30 mW

-Output Impedance
PHONES: 4.7 ohms

-Recommended Load Impedance
PHONES: 16 ohms or greater

-Display
Graphic OLED display (128 x 32 dots)

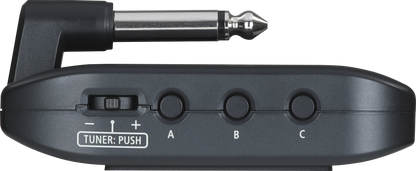

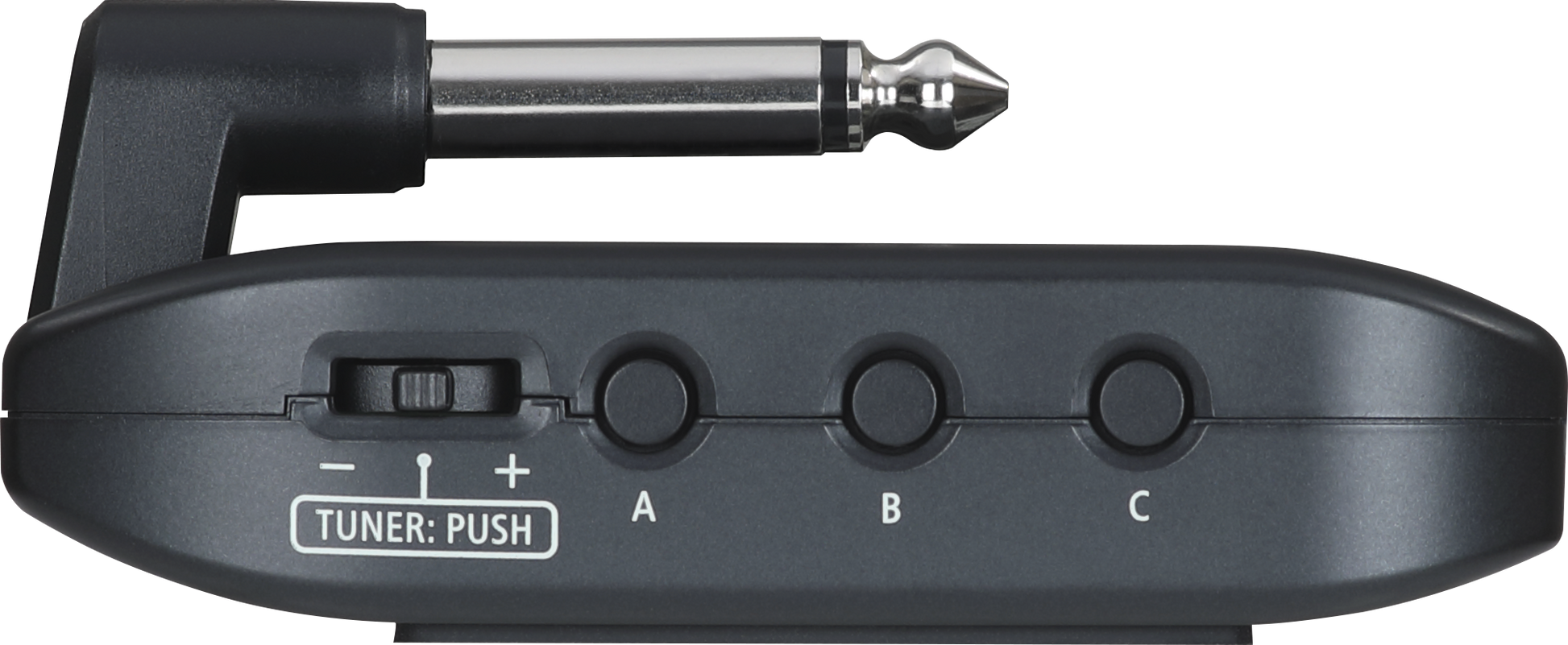

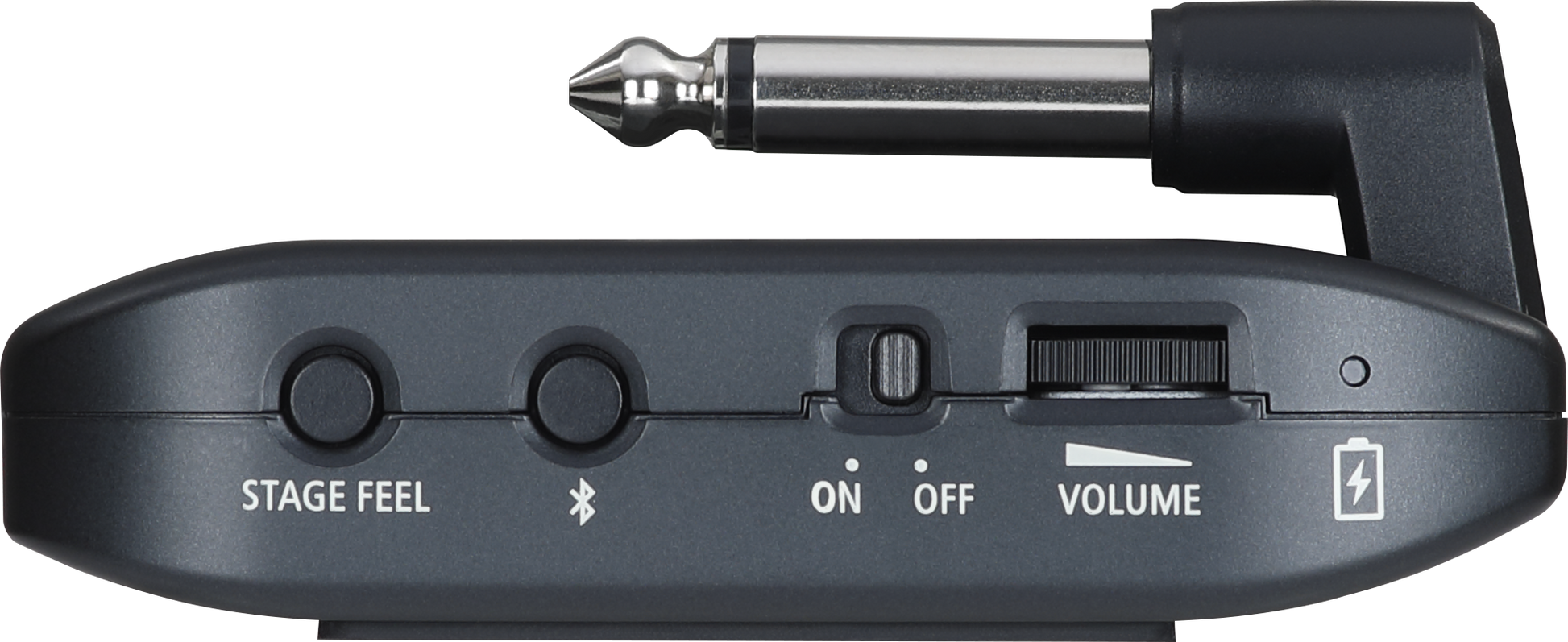

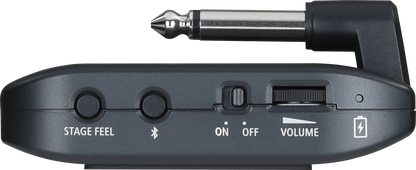

-Controls
Master volume
POWER switch
A button
B button
C button
Bluetooth(R) button
STAGE FEEL button
Multi-function button

-Connectors
Input plug: 1/4-inch phone type
PHONES jack: Stereo miniature phone type
USB port: USB Type-C(R)

-Bluetooth
Profile Support: A2DP (Audio)
GATT (MIDI over Bluetooth Low Energy)

-Power Supply
Rechargeable lithium-ion battery
Supplied from the USB port

-Current Draw
500 mA

- Expected battery life under continuous use
Approximately 5 hours
* These figures will vary depending on the actual conditions of use.

-Battery charging time
Approximately 3 hours
*To charge the unit, use the USB port of a computer or a commercially available USB power supply adaptor (5 V, 500 mA or higher).

-Dimensions
45 (W) x 125 (D) x 29 (H) mm
1-13/16 (W) x 4-15/16 (D) x 1-3/16 (H) inches

-Weight
65 g
3 oz

-Accessories
Leaflet "Quick Start"
Leaflet "USING THE UNIT SAFELY"
USB Type-C(R) to USB Type-A cable

-Options (sold separately)
Wireless MIDI Expression Pedal: EV-1-WL
Wireless Foot Switch: FS-1-WL
Carrying Pouch: CB-KTNGO

* 0 dBu = 0.775 Vrms
